Avinox Drive System Guide
From the original M1 to the next generation of M2 and M2S motors.
Avinox E-Bike Technology
Engineering a new era of electric cycling
Born from DJI's expertise in motors, battery management, intelligent electronics and precision engineering, Avinox brings a fresh perspective to electric bike technology.
First unveiled at Eurobike in July 2024, the original Avinox Drive System made an immediate impression. Combining a remarkably compact motor with up to 105 Nm of torque and 850 W of peak power, it introduced a new level of performance to electric mountain biking. Launched alongside the Amflow PL, it established Avinox as a serious new force in the e-bike industry.
That original drive unit is now known as the Avinox M1. Its combination of high power, low weight and intelligent system integration helped establish the foundations for the technology that followed.
In April 2026, Avinox introduced the next generation of its drive systems: the M2 and M2S. Building on the original platform, these motors deliver increased performance, with the M2 offering up to 1,100 W of peak power and the flagship M2S reaching up to 1,500 W, subject to battery configuration.
Avinox has also evolved beyond its original launch, establishing itself as an independent company and expanding its reach across the bicycle industry, with more manufacturers adopting its drive technology. What began with one motor and one bike brand has grown into a broader platform for the next generation of electric bikes.
At Forwards Electric, we're excited to bring Avinox technology to riders in Southampton, offering specialist knowledge of the systems and the bikes built around them.
Compact by design. Powerful by nature. Built to move you further.

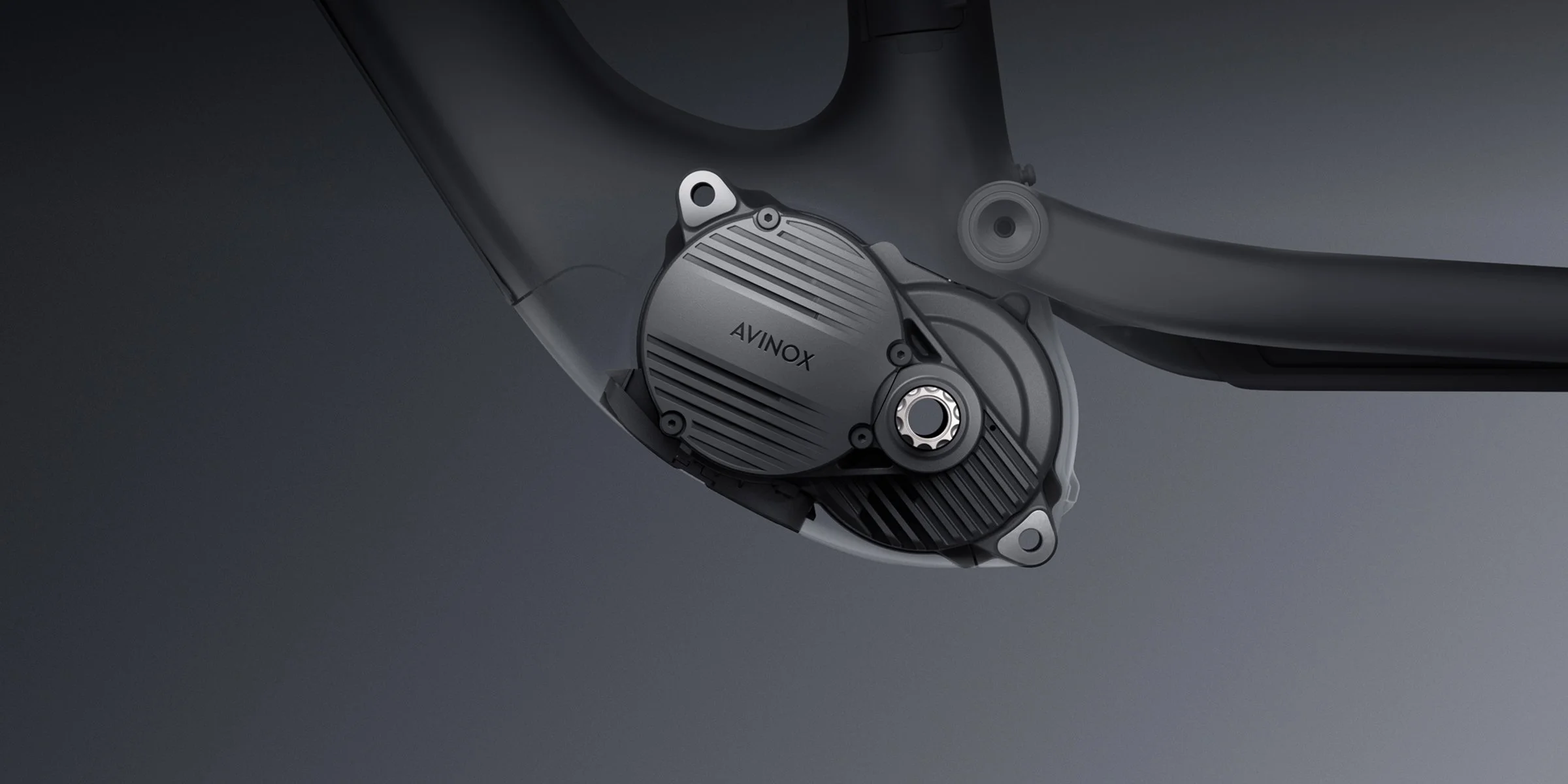

Avinox M1 – Technical Specifications
Rated power: 250 W
Maximum torque: 105 Nm (regular modes) / 120 Nm (Boost mode)
Peak power: Up to 1,000 W
Motor weight: Approx. 2.52 kg
Dimensions: 173 × 101 × 104 mm
Maximum assistance ratio: 800%
Protection rating: IP66
Crank interface: ISIS
Sound pressure level: ≤45 dBA
2024 - 2026

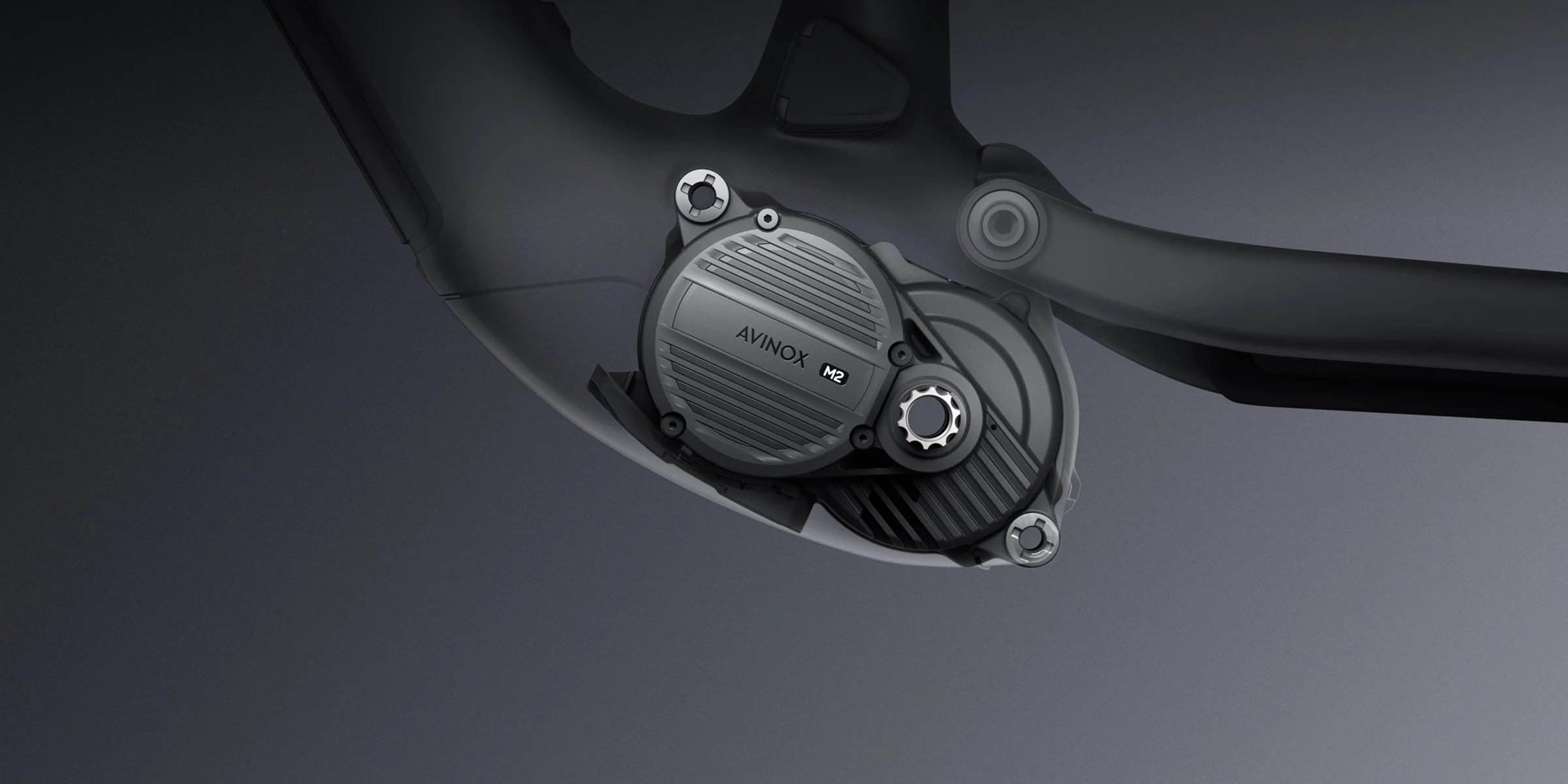

Avinox M2 – Technical Specifications
Rated power: 250 W
Maximum torque: 110 Nm (regular modes) / 125 Nm (Boost mode)
Peak power: Up to 1,100 W
Motor weight: Approx. 2.65 kg
Dimensions: 173 × 101 × 103 mm
Maximum assistance ratio: 800%
Protection rating: IP66
Crank interface: ISIS
Sound pressure level: ≤45 dBA
April 2026 to date
April 2026 to dateAvinox M2S – Technical Specifications
Maximum torque: 130 Nm (regular modes) / 150 Nm (Boost mode)
Peak power: Up to 1,500 W with compatible FP700 or RS800 batteries; up to 1,300 W with FS600 or FS800 batteries
Motor weight: Approx. 2.59 kg
Dimensions: 173 × 101 × 103 mm
Maximum assistance ratio: 800%
Protection rating: IP66
Crank interface: ISIS
Sound pressure level: ≤45 dBA

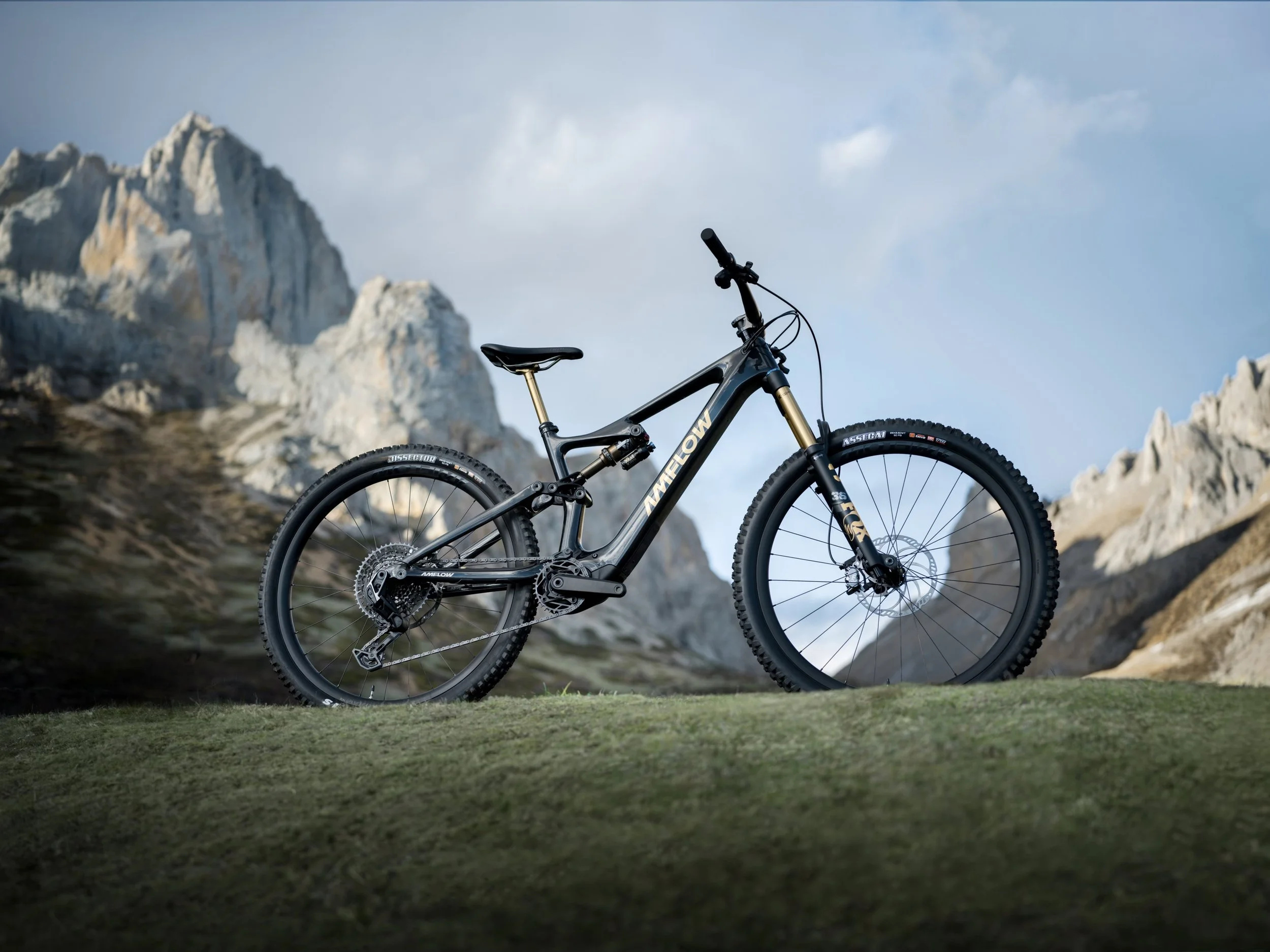

Amflow PL Carbon with Avinox M1 Drive System

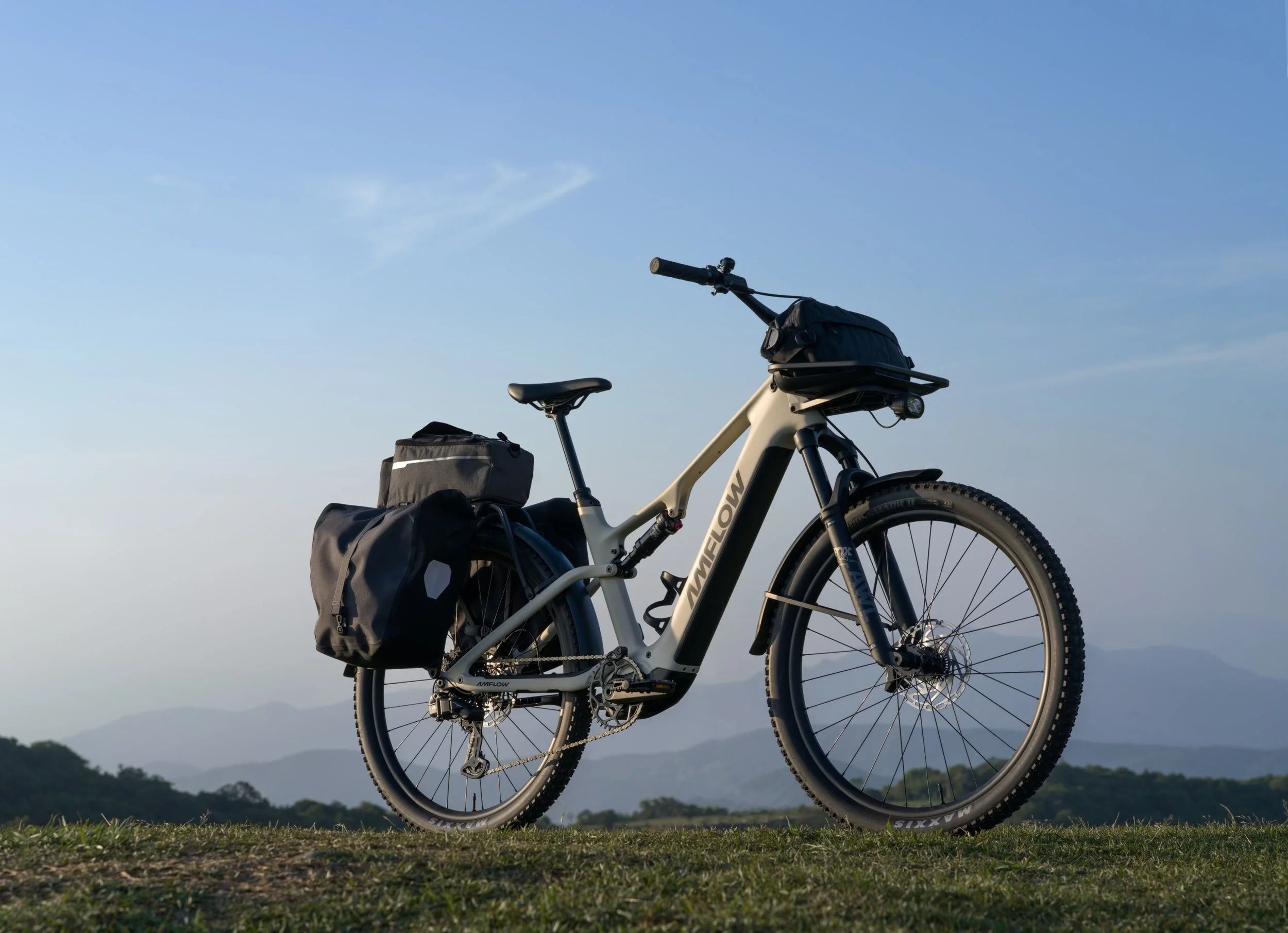

The Amflow TL Carbon with M2 Drive System

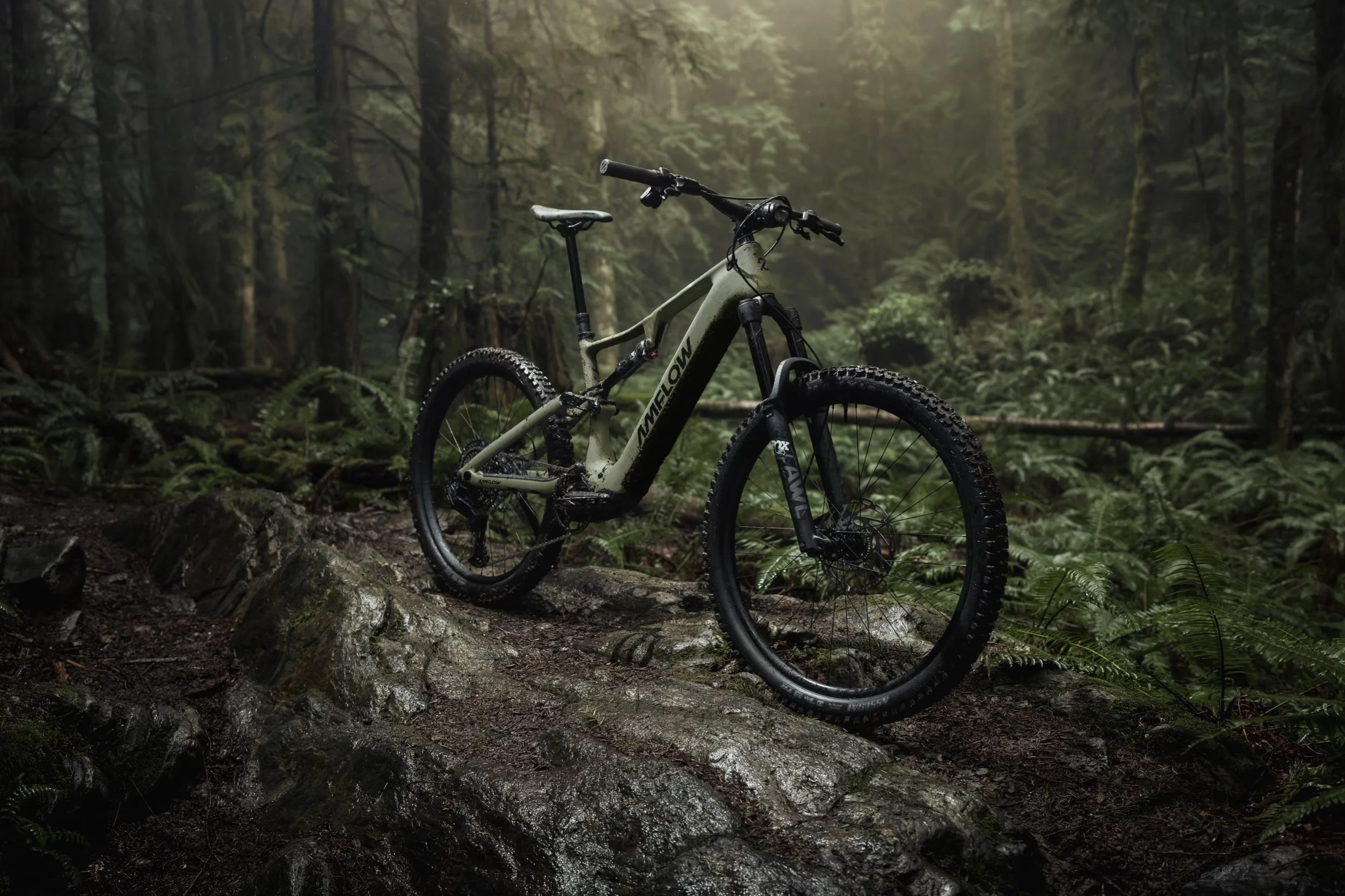

Amflow PR Carbon with M2 or PR Carbon Pro with M2S Drive System

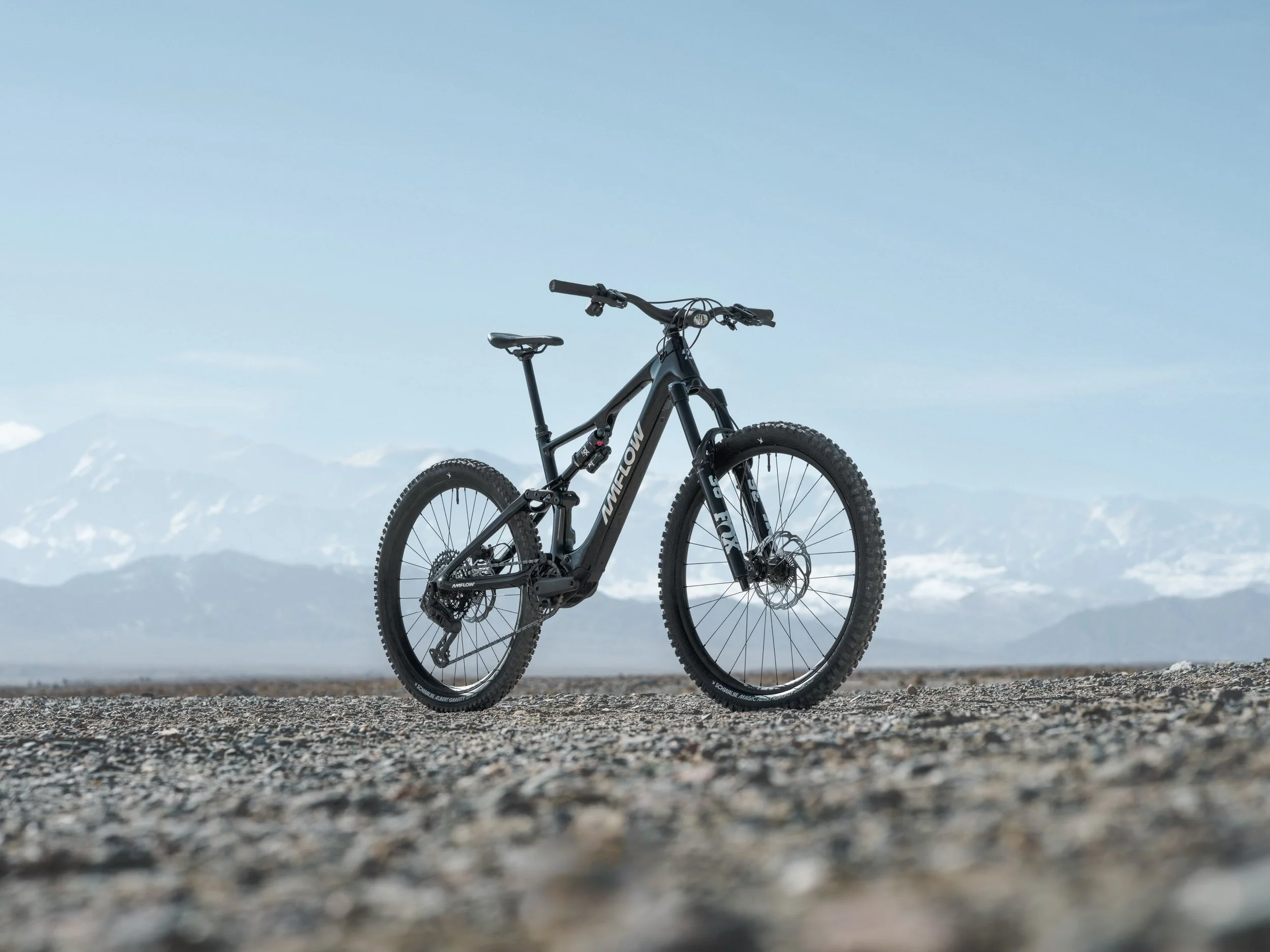

Amflow PX Carbon & PX Carbon Pro with M2S Drive System
Discover Avinox-Powered Amflow Bikes
From the Original M1 to the Current Generation
Amflow introduced the original PL Carbon in 2024, bringing Avinox drive technology to the electric mountain bike market. Since then, the technology has evolved, with the M2 and M2S representing the next generation of Avinox motors.
The current Amflow range combines these newer drive systems with different bike designs, from versatile SUV e-bikes to high-performance electric mountain bikes. Here's how the motors compare across the range.

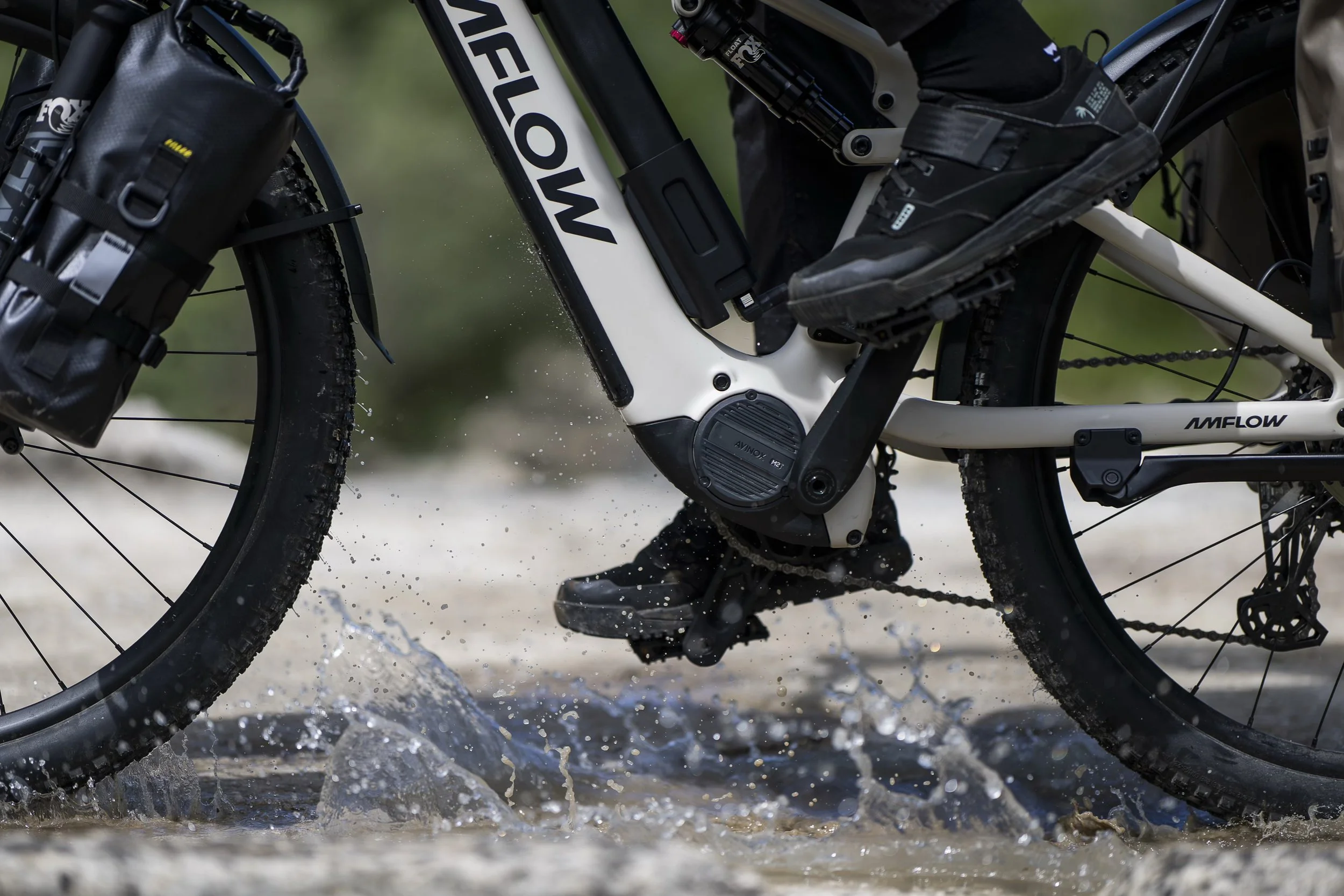

Amflow TL Carbon – Avinox M2
The TL Carbon brings Avinox technology to a versatile SUV-style electric bike. Its M2 motor delivers up to 125 Nm of torque in Boost mode and 1,100 W of peak power. Full suspension and practical carrying options make it suited to everyday journeys, trail riding and longer adventures.
Amflow PR Carbon – Avinox M2
The PR Carbon combines the M2 motor's 125 Nm of Boost torque and up to 1,100 W of peak power with a removable battery system. It's designed for riders who want strong trail performance alongside greater flexibility for charging and longer adventures.
Amflow PR Carbon Pro – Avinox M2S
The PR Carbon Pro upgrades to the M2S motor, delivering up to 150 Nm of torque and 1,500 W of peak power, subject to battery configuration. It combines flagship motor performance with the convenience of a removable battery.
Amflow PX Carbon and PX Carbon Pro – Avinox M2S
The PX range represents Amflow's high-performance electric mountain bike platform, using the M2S motor with up to 150 Nm of torque and 1,500 W of peak power. Its integrated 700 Wh battery and lightweight carbon frame are designed for demanding trail riding.
Explore Avinox at Forwards Electric
At Forwards Electric in Southampton, we specialise in premium electric bikes and the technology that powers them. Whether you're comparing the latest Avinox motors or deciding which Amflow best suits your riding, we can help you understand the differences and find the right bike for your needs.
Discover the latest Amflow range at Forwards Electric and experience the next generation of electric cycling.
