Stromer ST2 Pinion: Features and specifications

Smooth, responsive performance

The CYRO Drive 3 rear-wheel motor delivers 750 W and 40 Nm of torque, providing smooth, responsive acceleration with assistance up to 45 km/h. Its rear-wheel drive system delivers the distinctive, dynamic riding experience Stromer is known for.

Reliable Pinion gearbox

The six-speed Pinion C1.6 gearbox provides dependable shifting and a practical gear range for everyday riding. Combined with the Gates Carbon Belt Drive, it offers a clean, quiet and low-maintenance drivetrain.

Extended range

The 983 Wh battery provides a claimed range of up to 180 km, making the ST2 Pinion well suited to regular commuting and longer journeys. Actual range depends on terrain, rider weight, temperature and assistance level.

Adjustable riding position

The individually adjustable stem allows you to fine-tune your riding position to suit your preferences. Available Sport and Comfort configurations offer further flexibility, depending on the selected model.

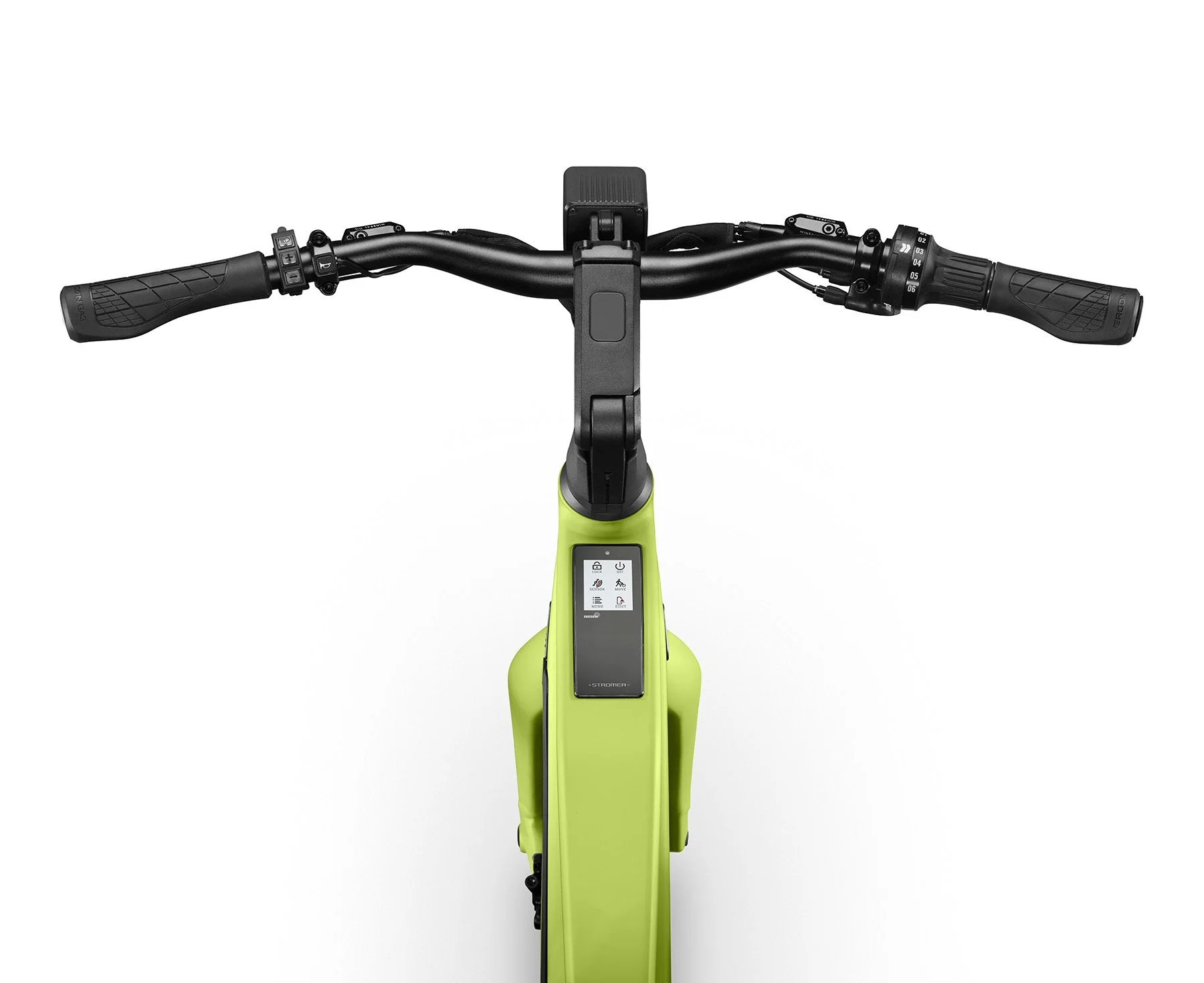

Intelligent connectivity and security

Stromer OMNI Connect provides GPS tracking, Smartlock, keyless functionality, ride statistics, motor settings and over-the-air software updates. The OMNI C display keeps essential ride information accessible.

Technical specifications

Motor and performance

• Motor: Stromer CYRO Drive 3

• Maximum motor power: 750 W

• Torque: 40 Nm

• Maximum assisted speed: 45 km/h

• Battery: BQ983, 48 V, 983 Wh

• Claimed maximum range: Up to 180 km

• Charger: Stromer CR246, 246 W

• Maximum charging time: Approximately 5 hours 30 minutes

Drivetrain

• Gearbox: Pinion C1.6

• Gearing: Six-speed

• Drive: Gates Carbon Belt Drive

• Crankset: Pinion Forged, 175 mm

Braking and lighting

• Brakes: Stromer HD922 by Tektro

• Brake configuration: Two-piston front and rear

• Brake discs: 203 mm front and rear

• Daytime running light: Stromer Daytime Cruise Light

• Integrated lighting: Front and rear lighting

Frame and equipment

• Frame: Aluminium

• Frame sizes: M and L

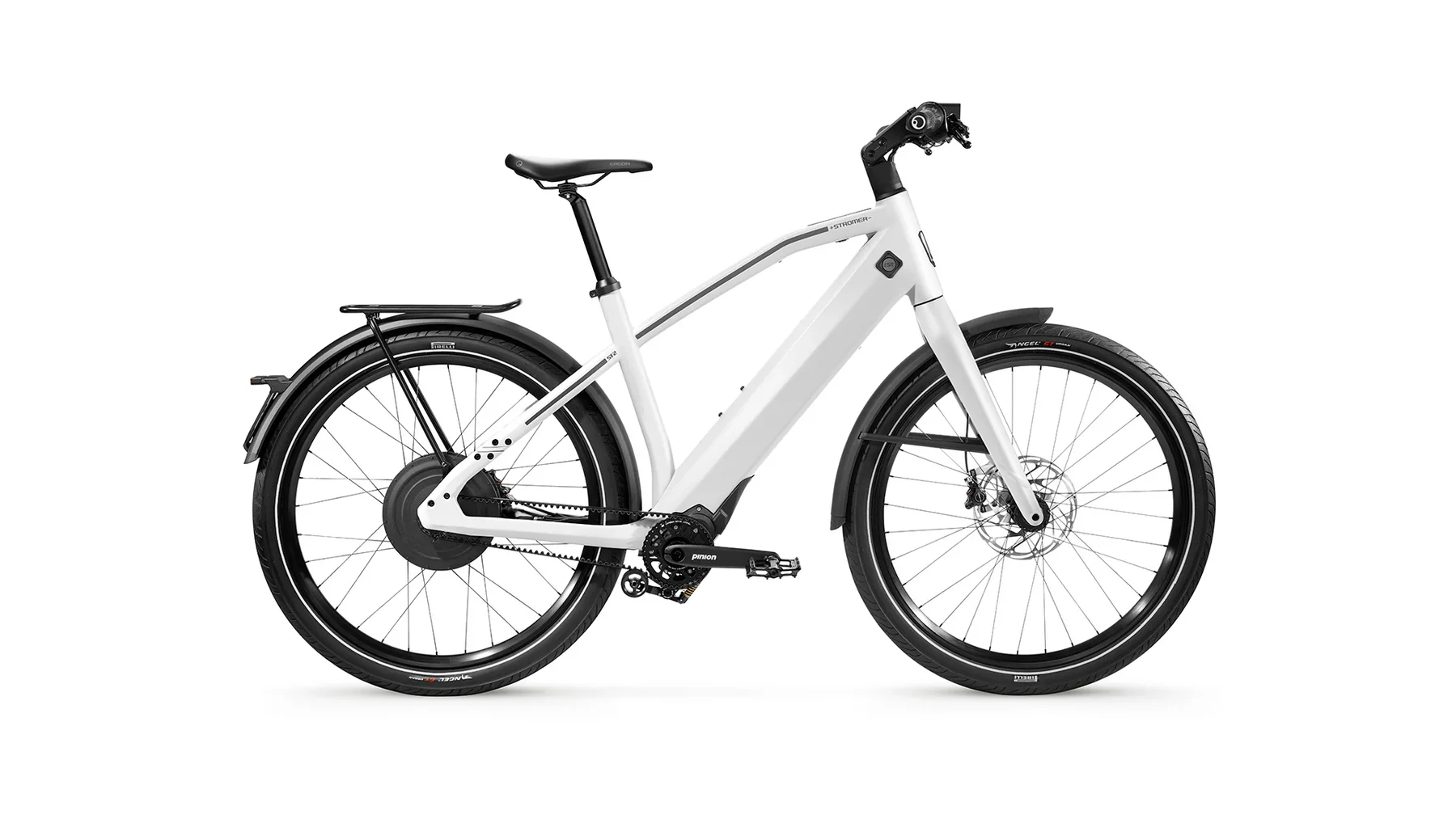

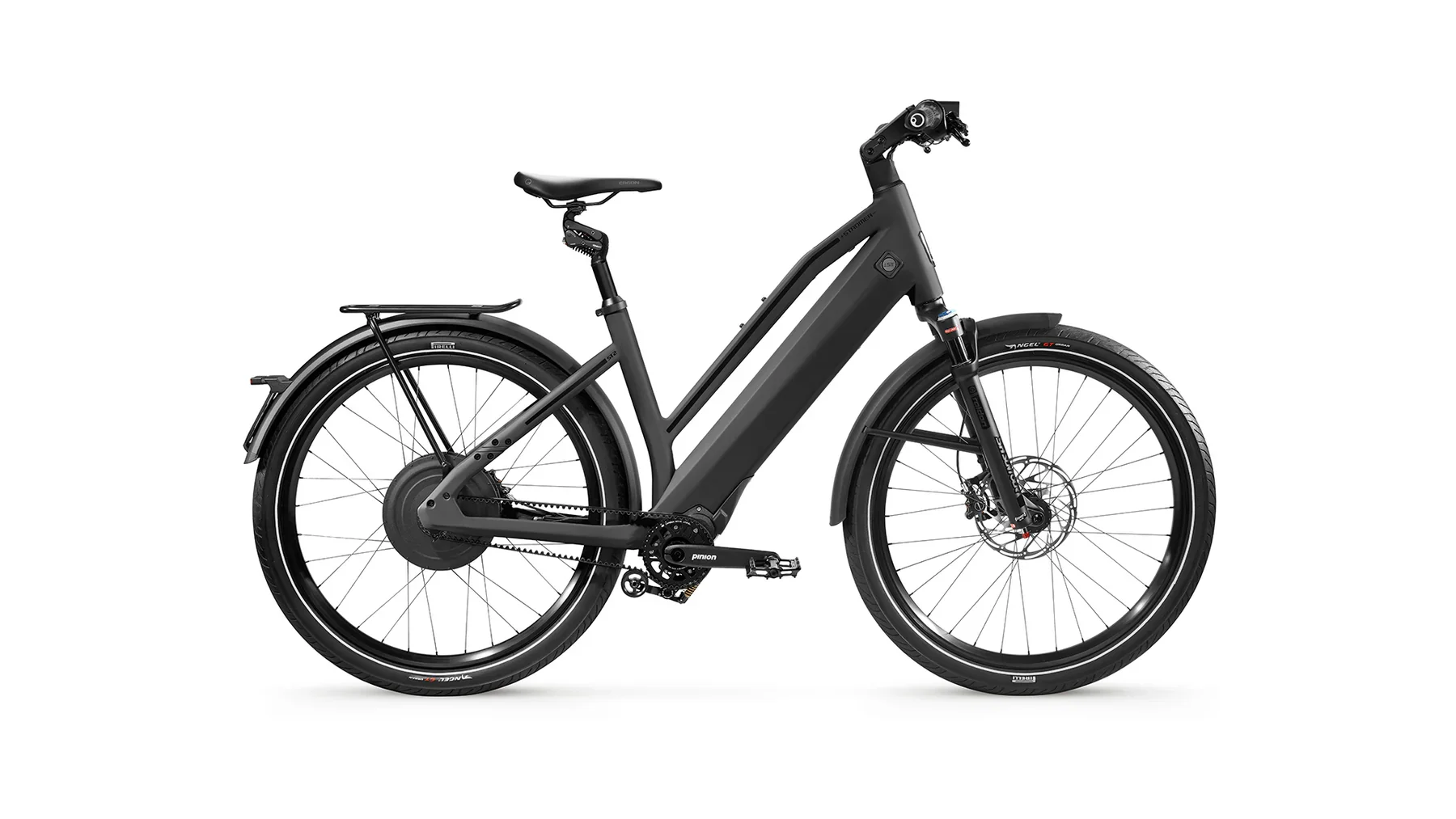

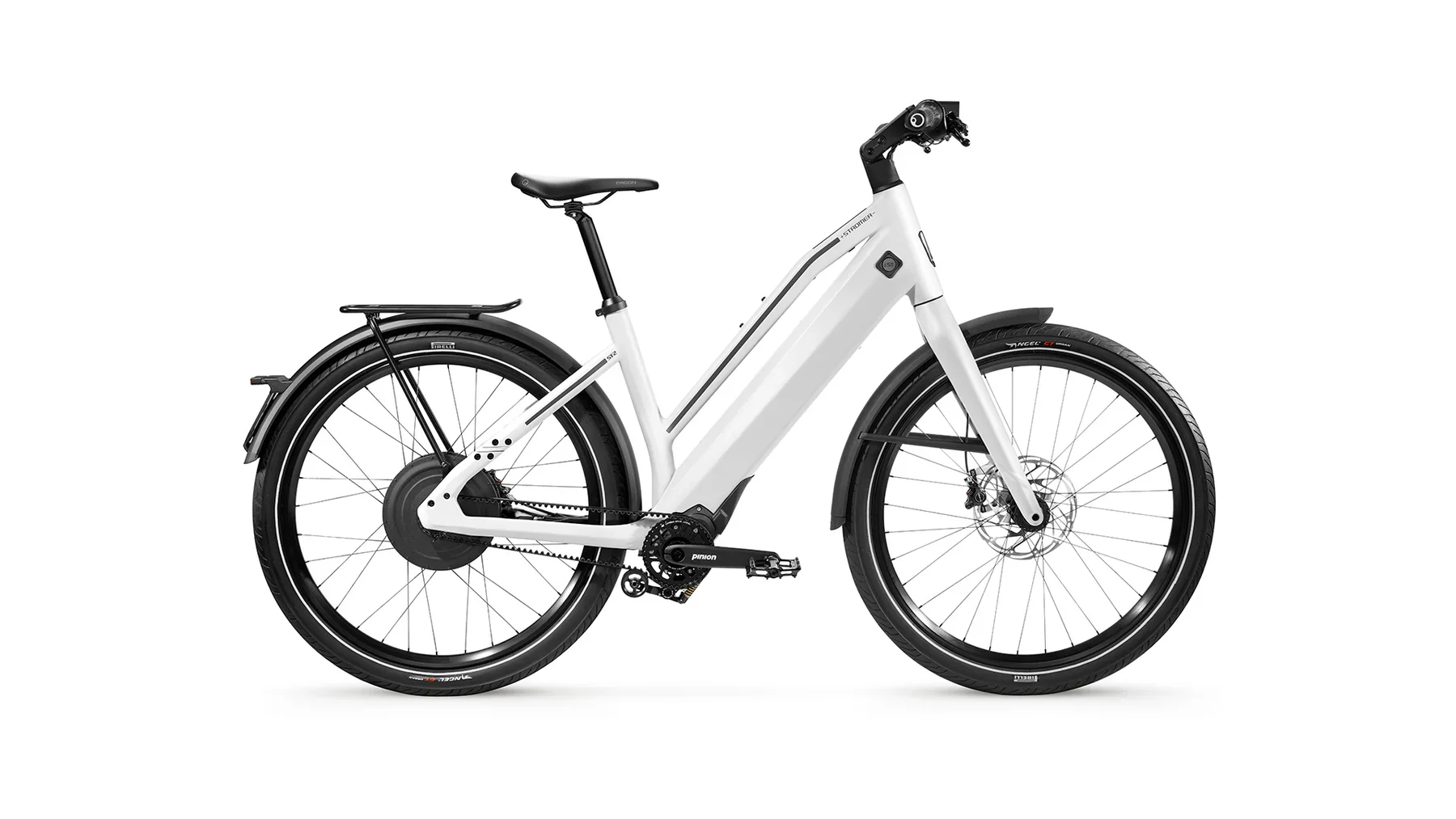

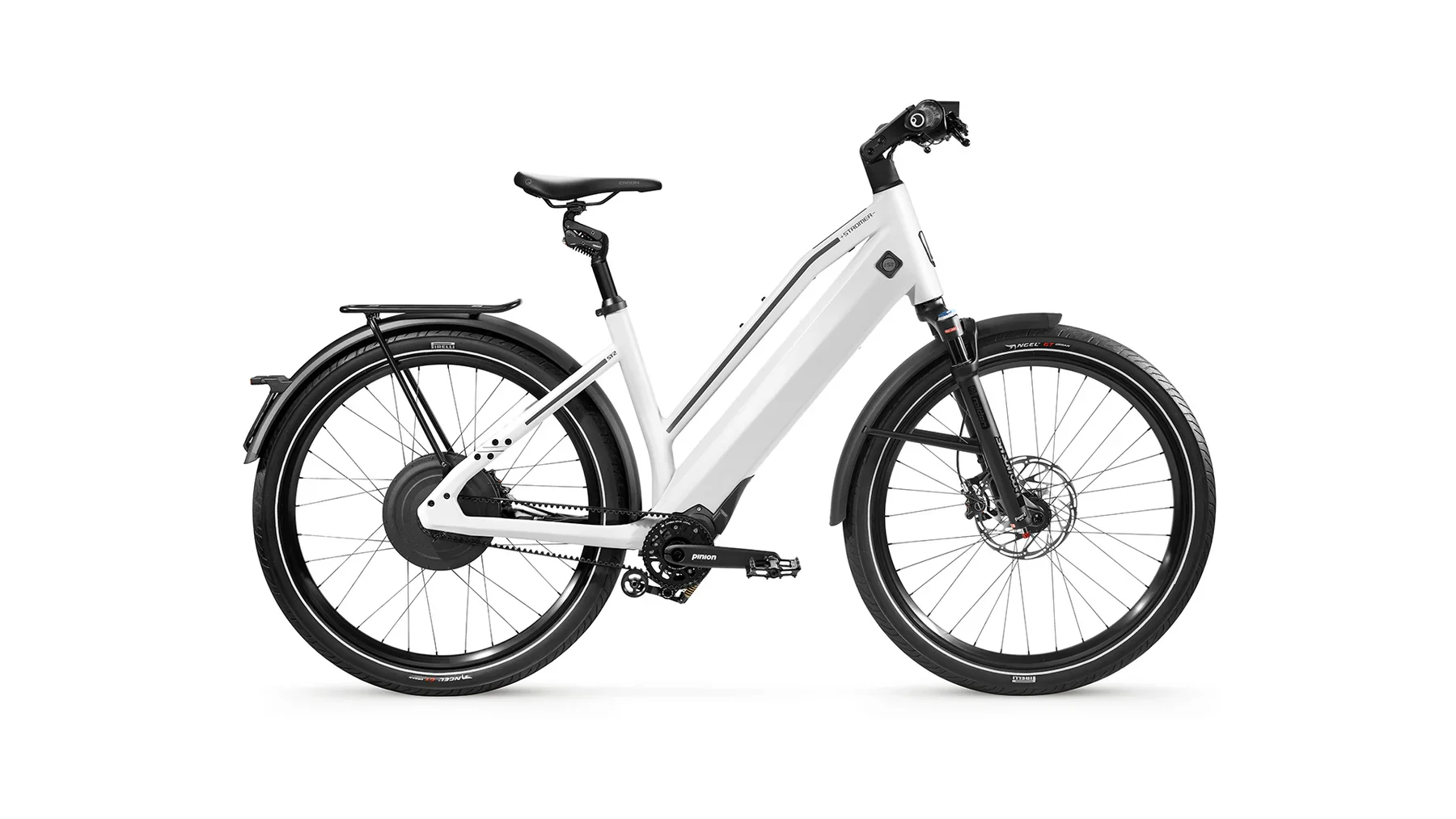

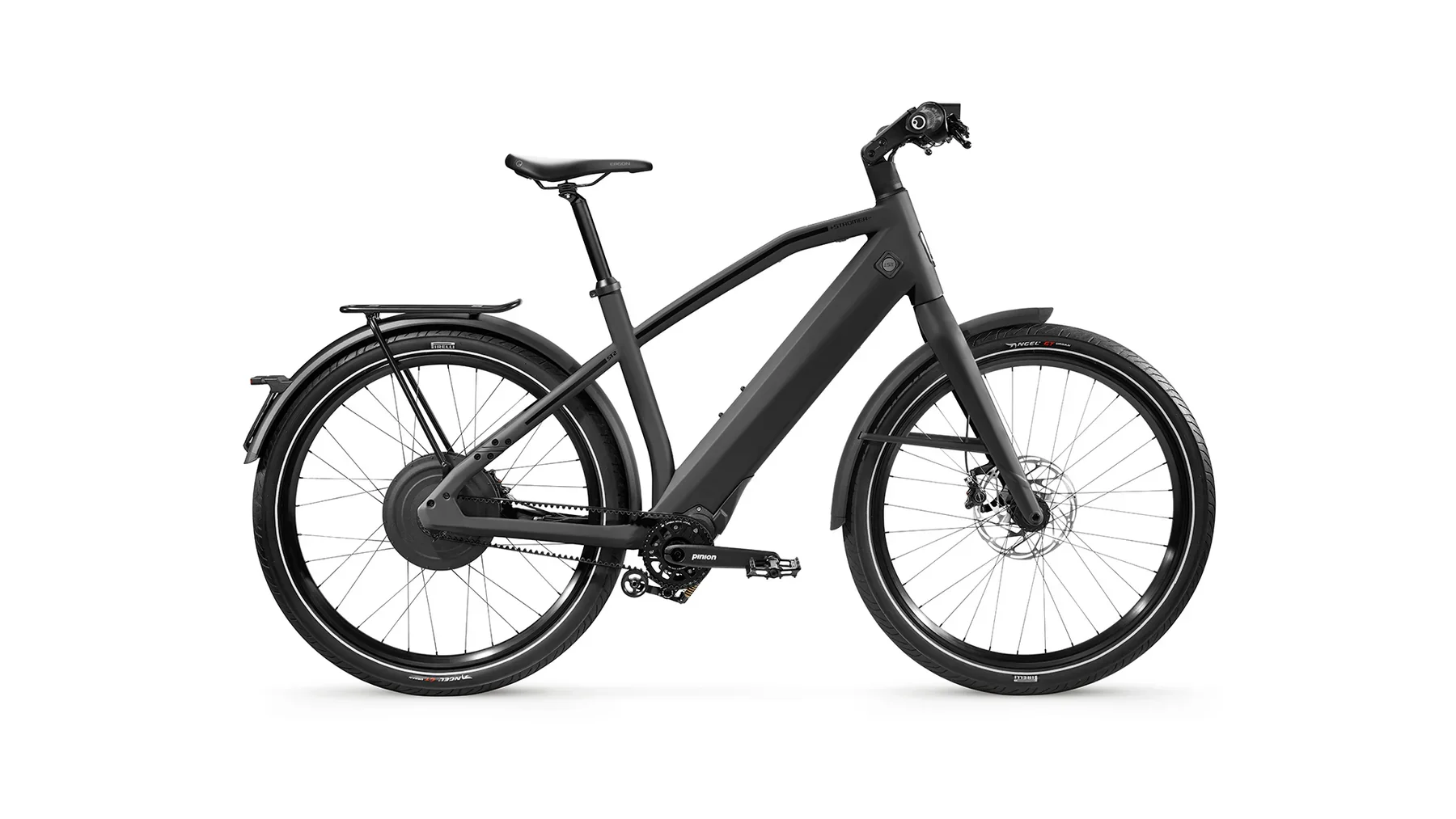

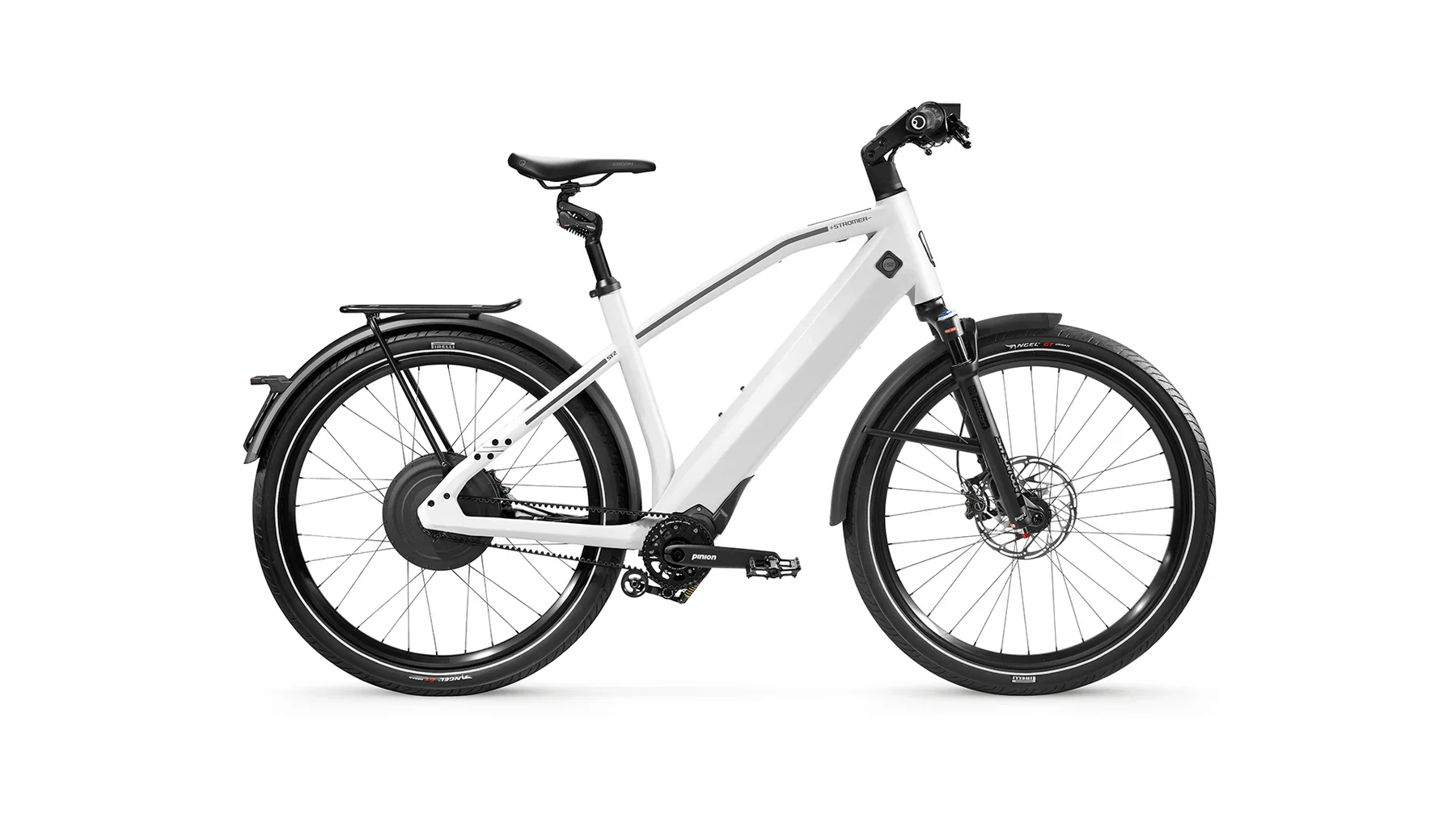

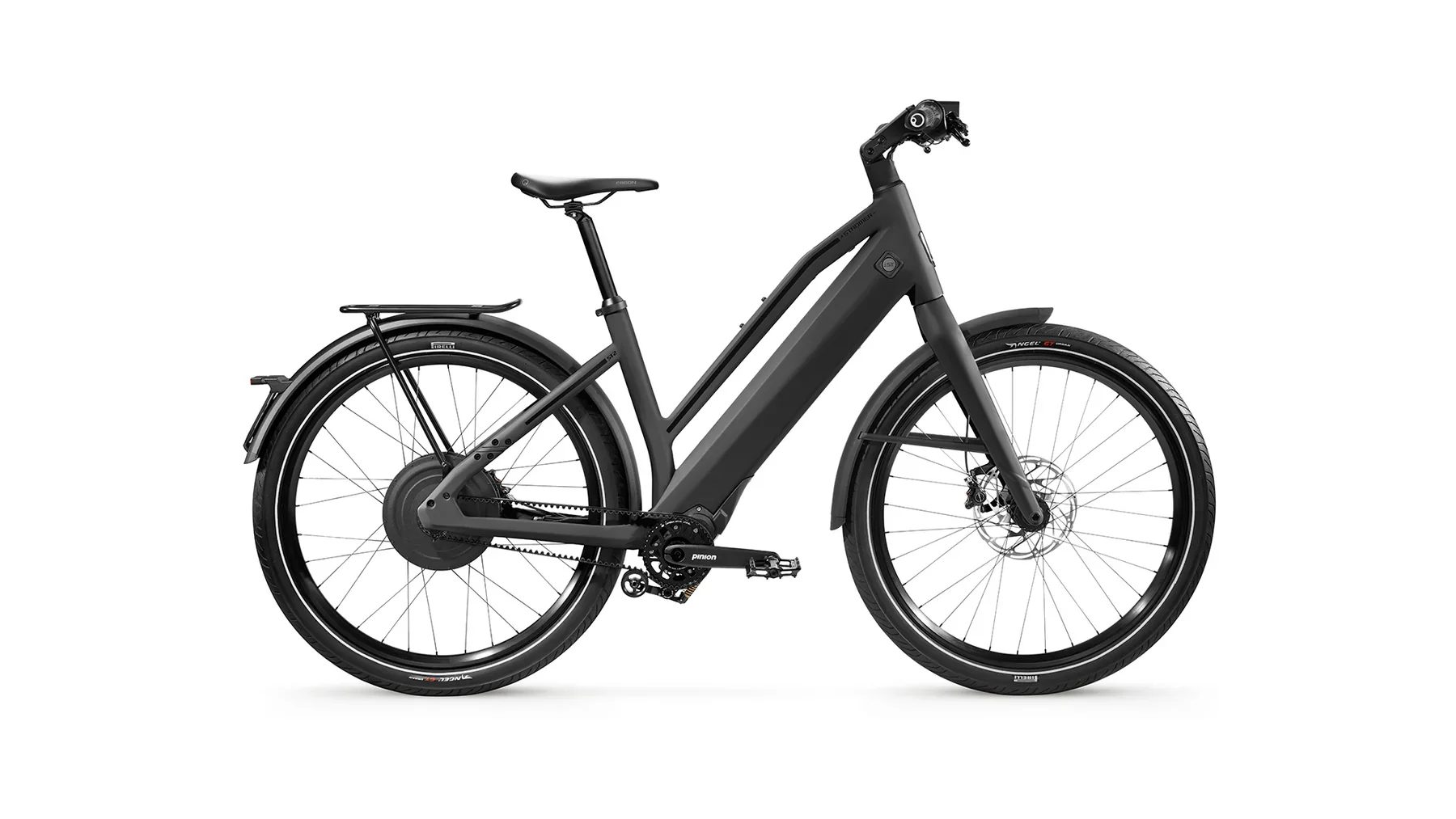

• Frame configurations: Sport and Comfort, depending on availability

• Stem: Individually adjustable Satori Python SP Connect+

• Handlebar: Stromer Sweep

• Grips: Ergon GA30 Single Twist Shift

• Wheels: Stromer 27.5 × 30 rims

• Tyres: Pirelli Angel GT Urban, 57-584

• Saddle: Ergon ST10

• Display: Stromer OMNI C

• Connectivity: Mobile network and Bluetooth

• Security: GPS tracking, Smartlock and keyless functionality

• Rear rack: Racktime, maximum load 22.5 kg where fitted

Specifications and equipment may vary by model year and configuration. Confirm the exact components supplied with your bike. Claimed range depends on riding conditions, terrain, rider weight and assistance level.

Important information for UK customers

The Stromer ST2 Pinion is a speed pedelec with assistance up to 45 km/h. It is not an ordinary electrically assisted pedal cycle under UK law. Separate registration, insurance and licensing requirements may apply, so customers should confirm the requirements for their intended use before purchase.
