Stromer ST3 Pinion.
Purist efficiency straight out of the future.
The ST3 Pinion with its Pinion gearbox, Gates carbon belt drive, (optional) fully integrated ABS and the most powerful battery, is an exceptionally dynamic S-Pedelec and ideal for everyday use. The customizable riding position and the smart extras ensure comfortable, stylish and efficient mobility in commuter traffic.
-
Endorphins for your commute.
The powerful rear motor accelerates silently and dynamically up to
45 km/h (28 mph)
-
Stamina for sprints and long distances.
Quickly and efficiently get where you are going: with a range of up to 150 km or optionally 180 km.
-
For long distances without getting tired.
Customize the ST3 to suit your needs - with factory options such as the comfort stem for a more upright riding position, the Kinekt suspension seatpost or the upside down suspension fork.
-

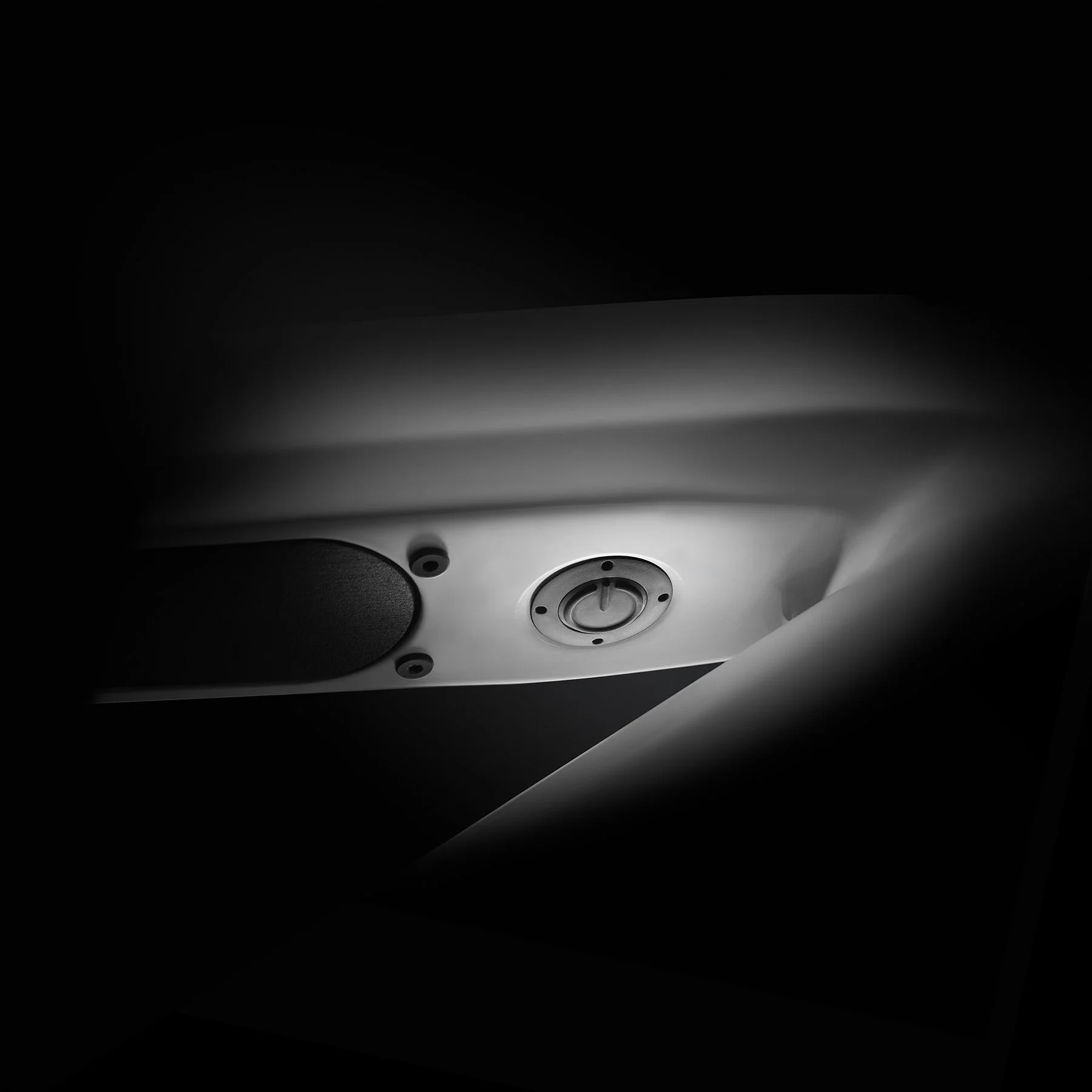

Fully integrated.
Contours with distinction.
The seamless integration of the components lends the ST3 Pinion its award-winning purist look.
-

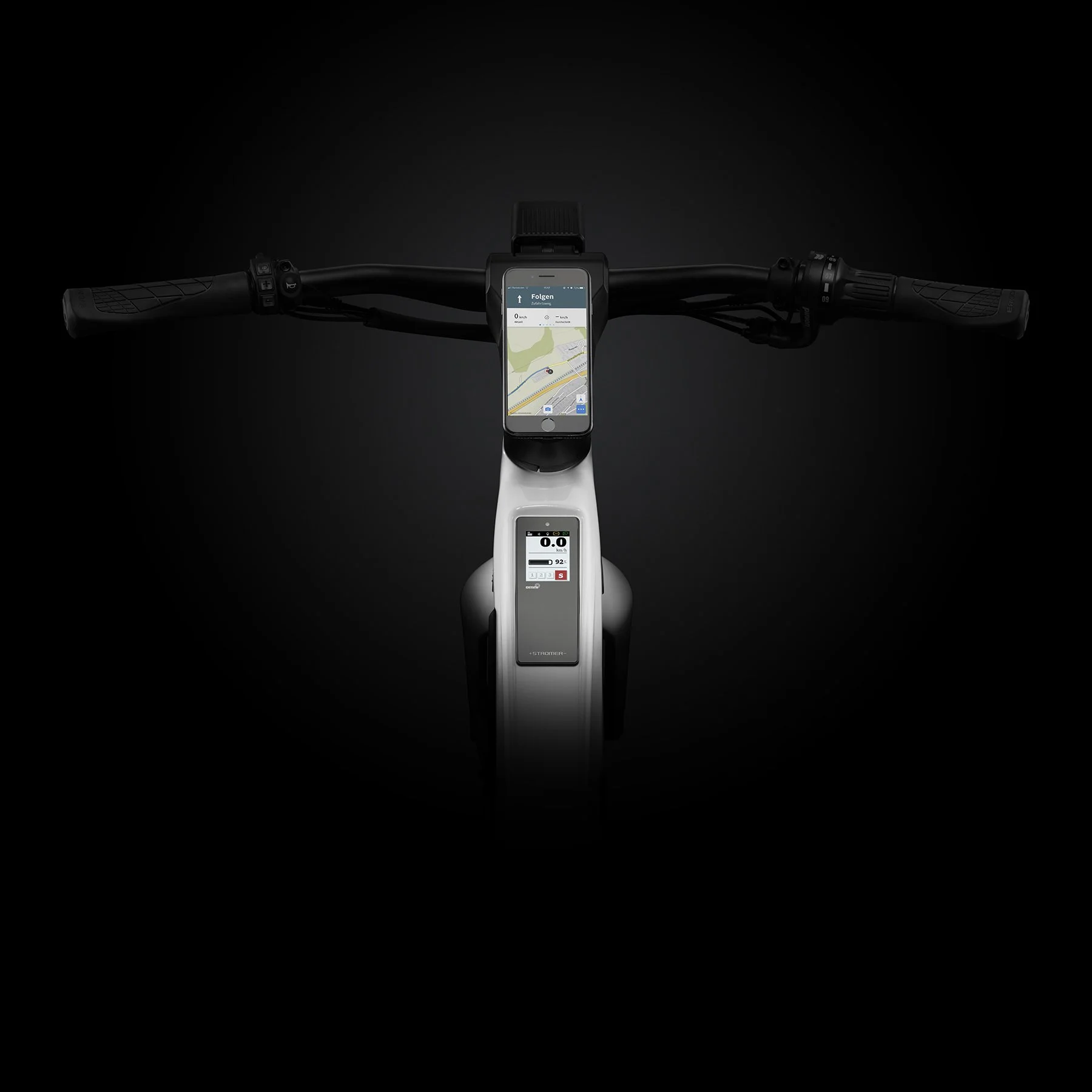

Safely connected: The ST3 Pinion.
Automatic motor locking, notification if moved without authorization and GPS localization protect your ST3 Pinion against theft.
-
With the Daylight daytime running light, powerful brake activation and the best possible asphalt grip as well as high directional stability of the large-volume Pirelli tires, the ST3 is agile and competent in urban traffic.

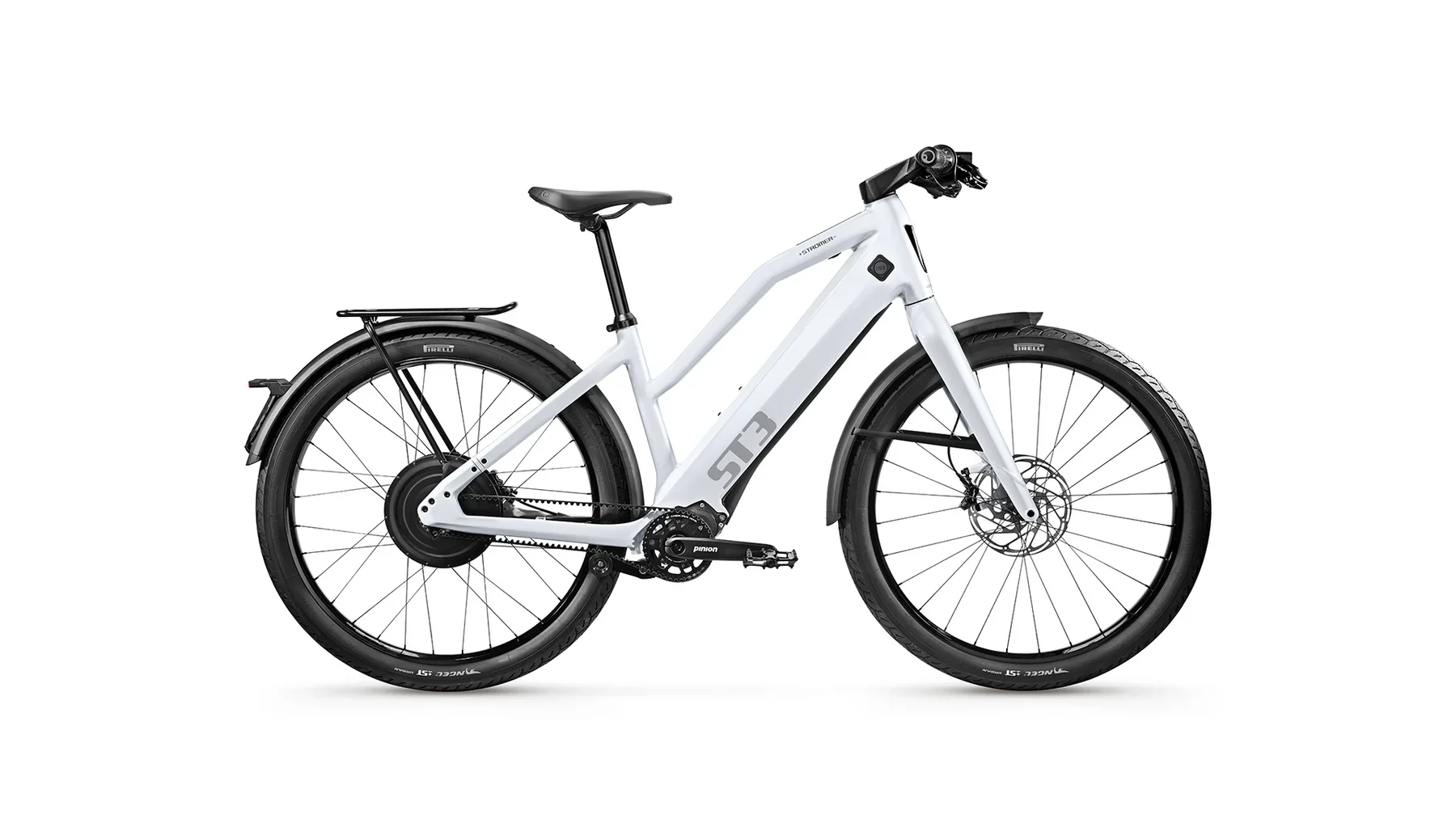

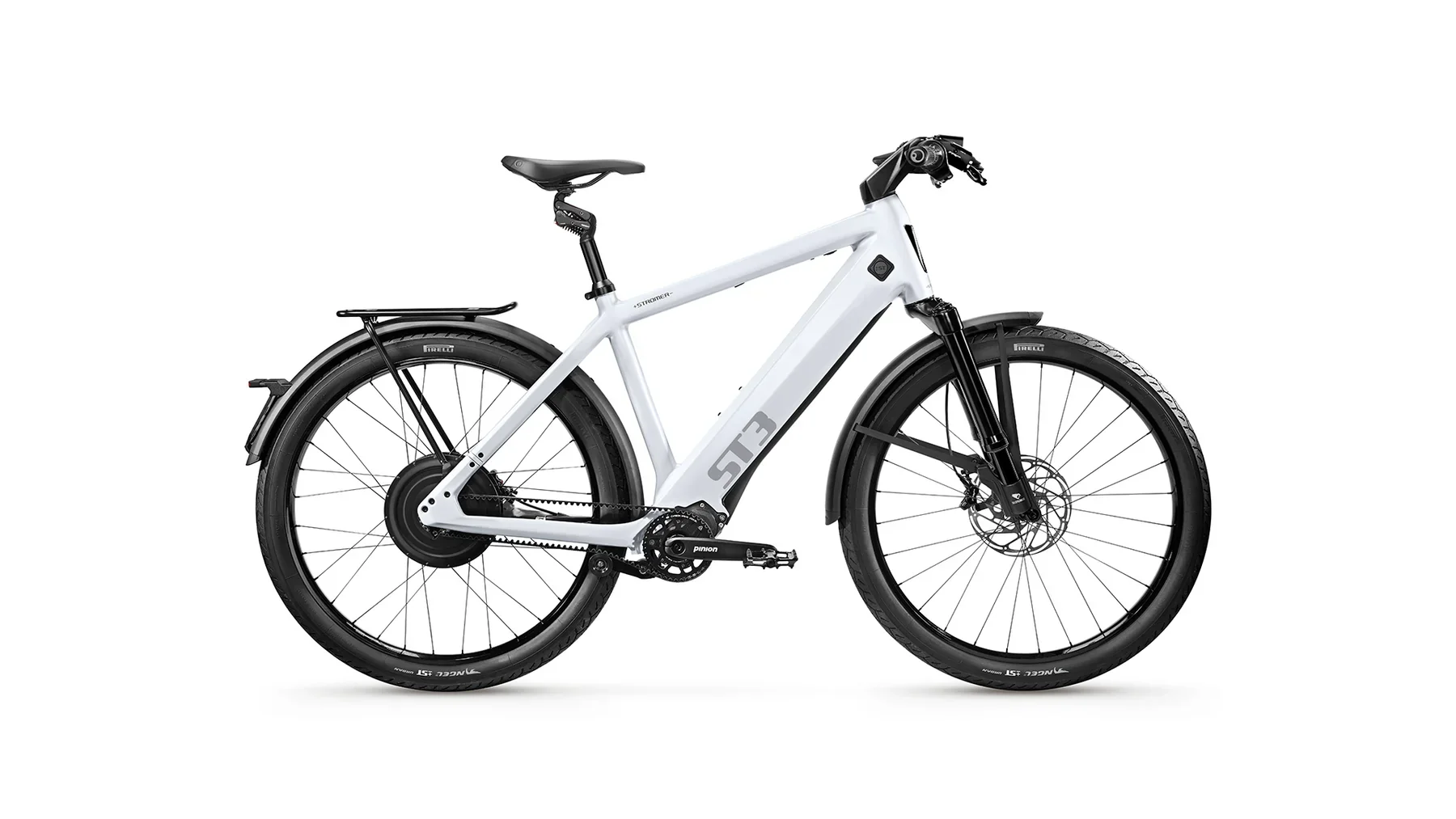

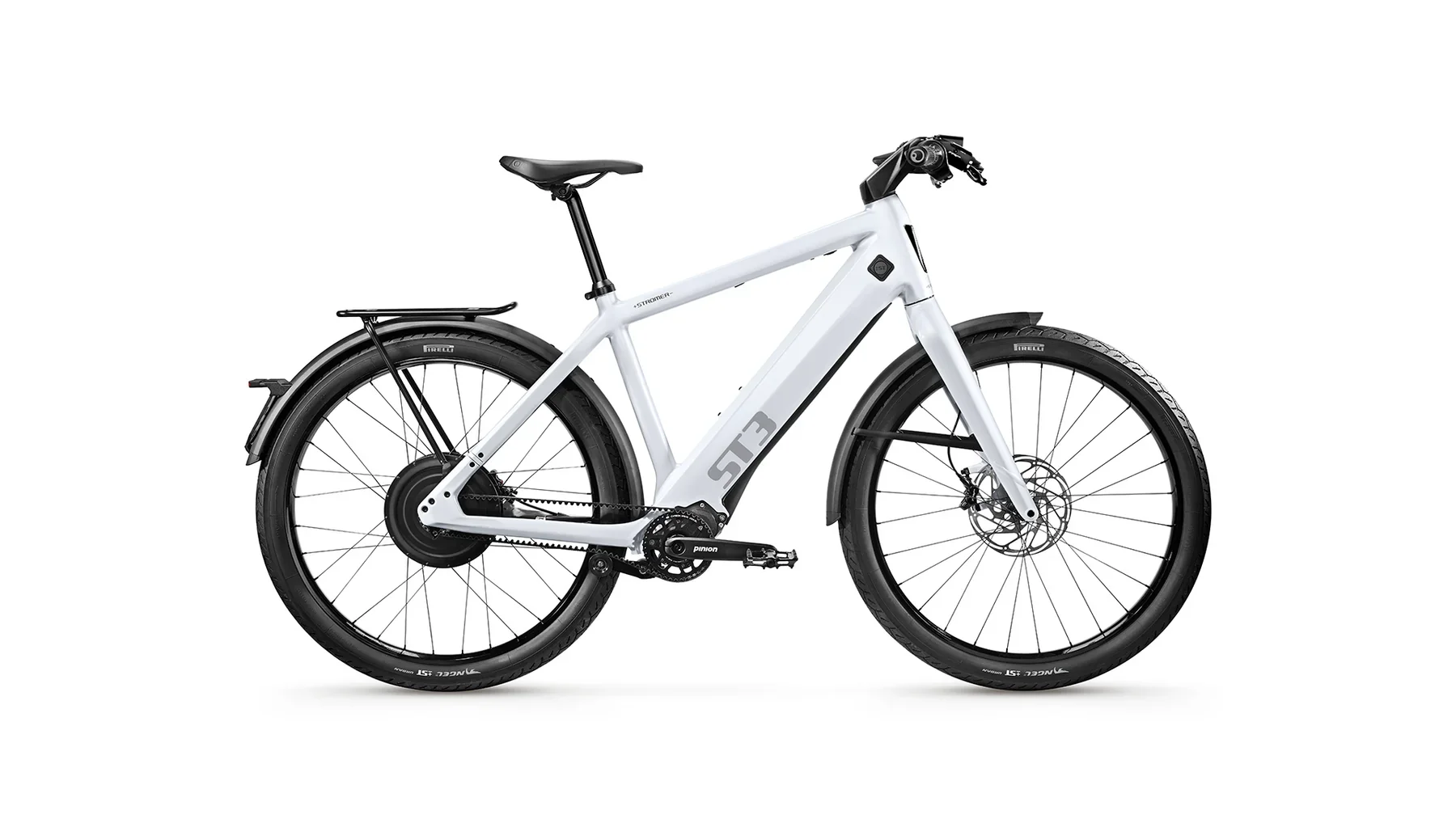

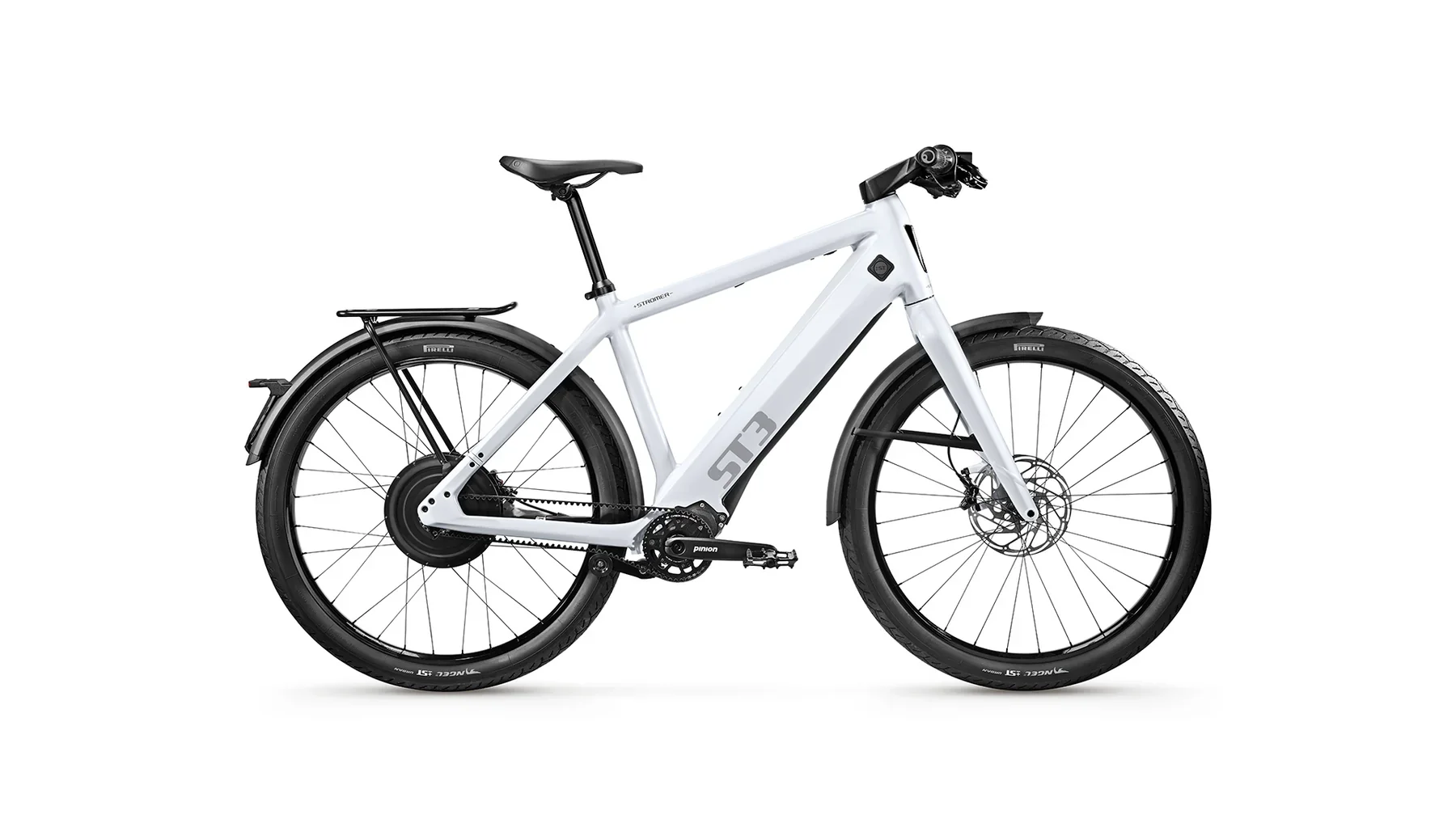

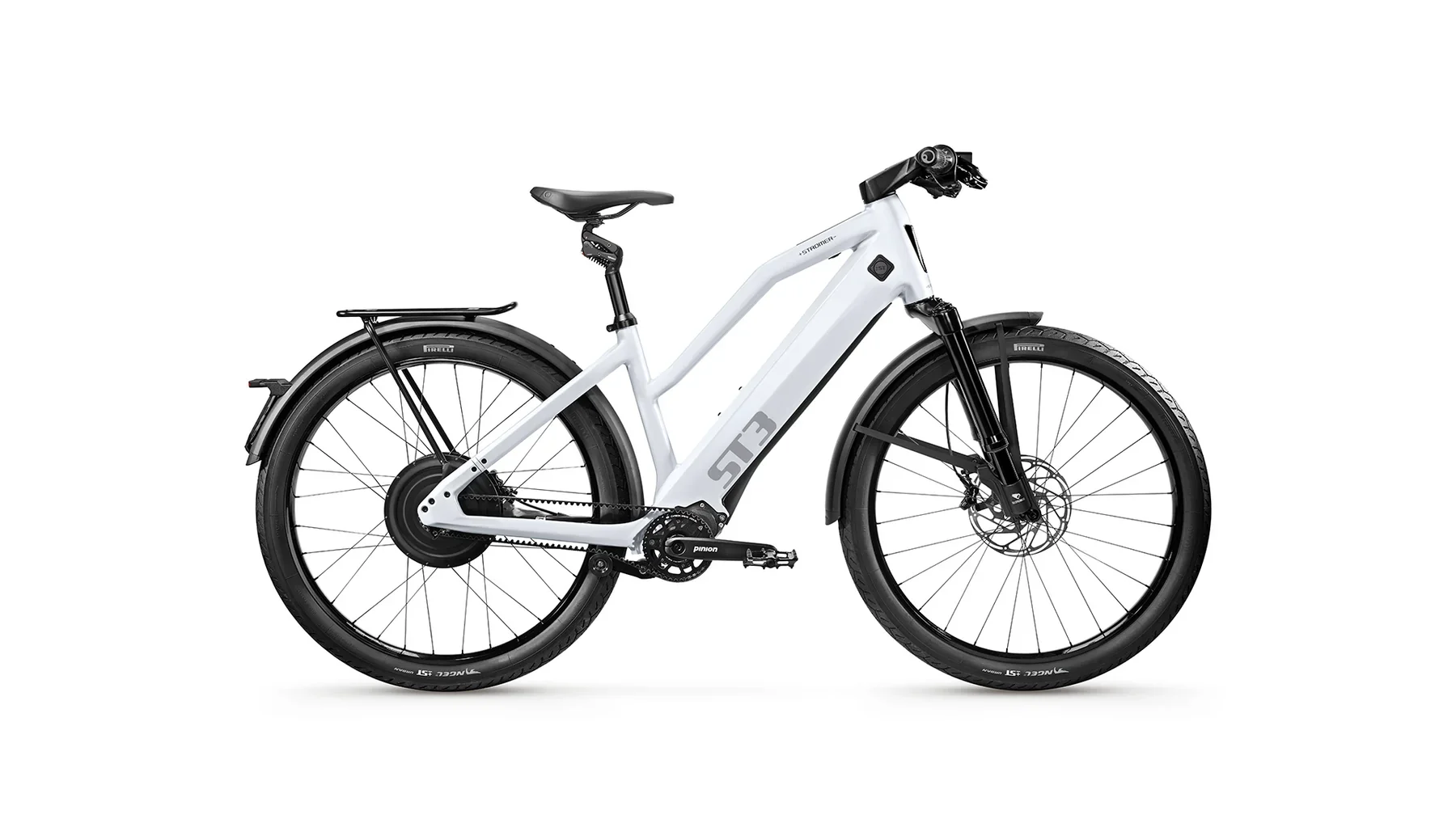

Stromer ST3 Pinion Cool White Sport & Comfort.
Pinion gearbox.
-
Pinion gearbox according to automotive standard.
The Pinion 9-speed gearbox allows for fast, precise gear changes while stationary and while riding, as well as a gear ratio range of 568 %. For a harmonious riding experience and extraordinary durability.
-
Technology from motorbike racing: Gates Carbon Belt Drive.
The powerful and clean carbon belt drive has been optimized for fast e-bikes. Advantage: smooth, noiseless riding with long service life and minImum maintenance.
Stromer ST3 Pinion Imperial Red Launch Edition Sport.

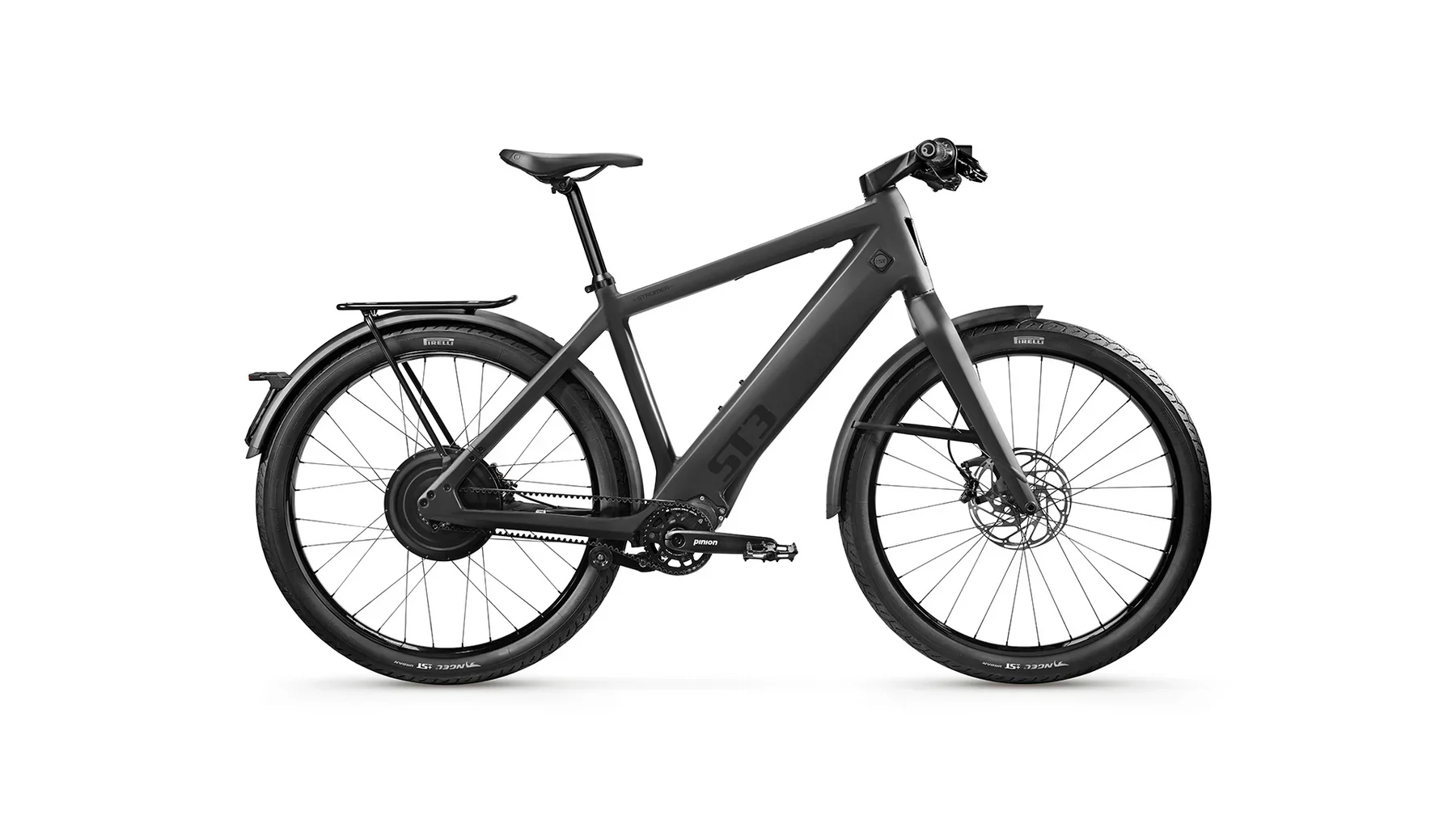

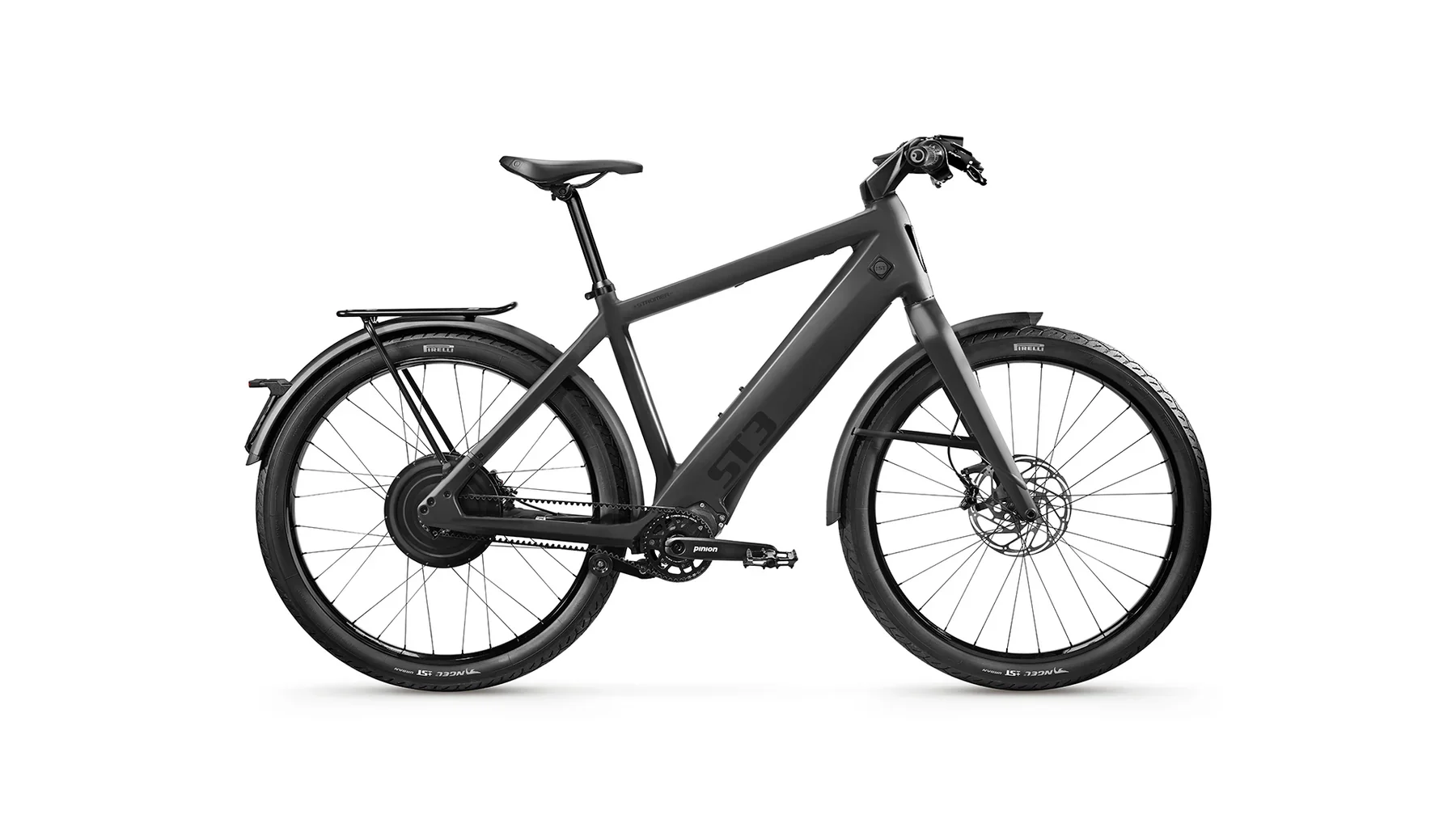

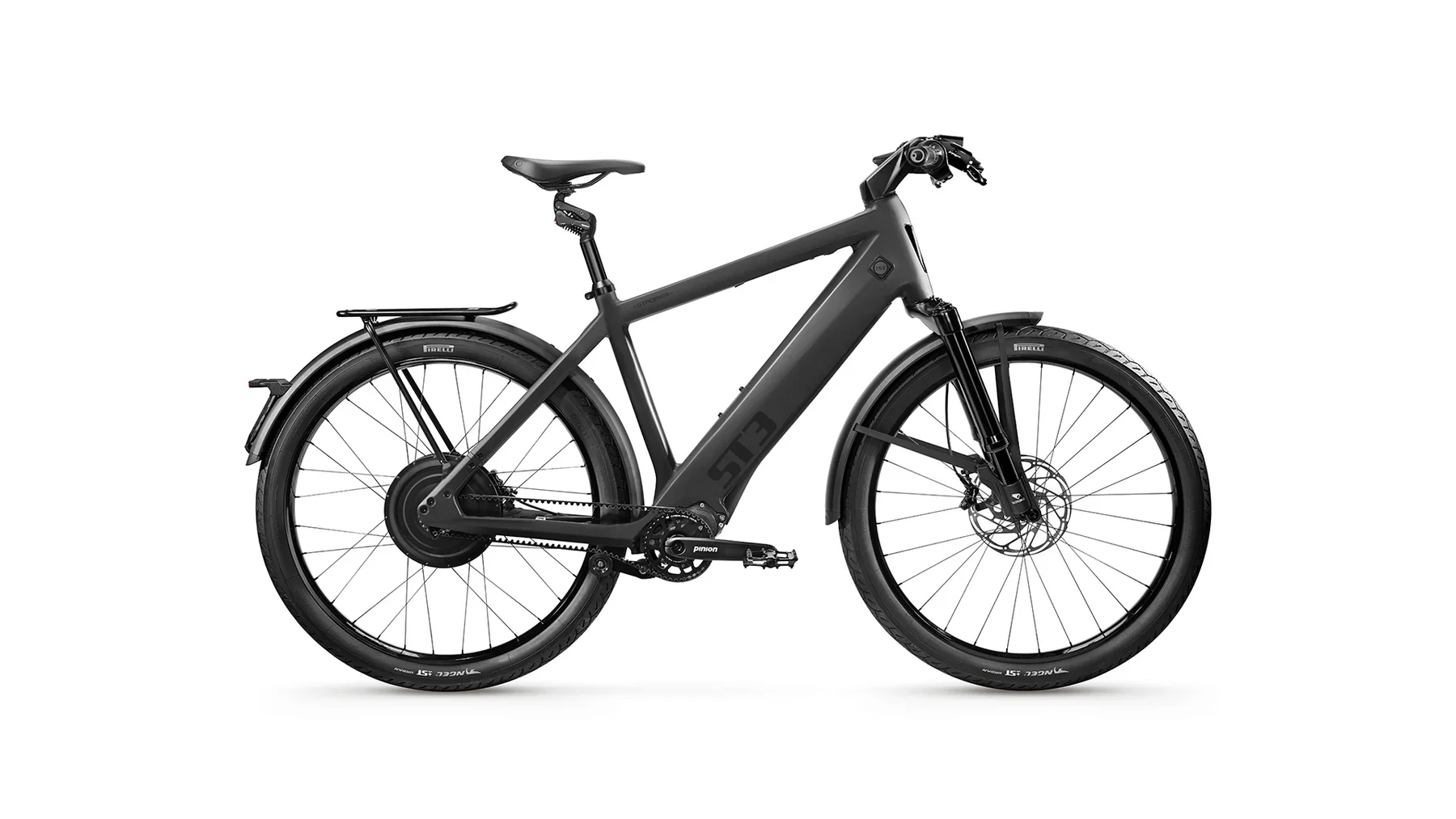

Stromer ST3 Pinion Deep Black.
-
Battery.
BQ814, 48V 814 Wh with 150 km (90 miles) range.
-
Charger.
Stromer CR246, 246 W Charger.
-
Tyres.
Pirelli Cycl-e for Stromer, 57-584.
| Stromer ST3 Pinion Technical Data | |
|---|---|
| Model | ST3 Pinion |
| Motor | |
| Type | SYNO Drive II |
| Output in watts | 820 W |
| Torque in Nm | 44 Nm |
| Category | L1e-B, up to 45 km/h 28 mph |
| Battery | |
| Battery | BQ814, 48 V, 814 Wh |
| Max Range | 150 km / 90 miles |
| Charger | Stromer CR246, 246 W |
| Max.charging time | 4 h 45 min |
| Connectivity | |
| Display Interface | OMNI C |
| Connectivity | Mobile phone network, Bluetooth |
| GSM | Mobile connection (free of charge) |
| App | OMNI |
| Keyless | Yes |
| Smartlock | Yes |
| Settings | Yes |
| Display of range | Yes |
| GPS positioning | Yes |
| Over-the-air Updates | Yes |
| Statistics | Yes |
| Colour | |
| Frame colour | Imperial Red Launch Edition (only Sport Frame),Deep Black (only Sport Frame),Cool White |
| Components | |
| Frame & Fork Material | Aluminum |
| Frame size Sport | M <178 cm, L 175 - 188 cm, XL >185 cm |
| Frame size Comfort | M <178 cm (Cool White only) |
| Stem | Stromer Urban +5°/105 mm (Comfort: Stromer Comfort +20°/110 mm) |
| Spacers | - |
| Stem cell phone bracket | Yes |
| Handlebar | Sweep Handlebar (rise 0 mm, Back Sweep 15°) |
| Grips | Stromer by Ergon custom GS1 all black |
| Wheel Rims | Stromer 27.5 x 35 by Alex Rims |
| Tyres, Dimension | Pirelli Cycl-e ST for Stromer, 57-584 |
| Brakes | Stromer HD942 by TRP |
| ABS | Optional |
| No. of pistons at front | rear | 4/2 |
| Brake disk size front | rear | 203 mm/203 mm |
| Number of gears | 9 speed |
| Shifting system | Pinion C1.9 XR 9-Speed (568 %) |
| Gear range % | 568% |
| Crank, chainring | Pinion Forged 175 mm |
| Saddle | Ergon SFC 30 Gel (Komfort: L) |
| Fender | Yes |
| Carrier | max. 22.5 kg | Yes, Racktime 70mm |
| Horn | Yes |
| Stromer Daylight | Yes |
| Headlights | Roxim Z4E Pro |
| Lumen low-beam | high-beam | 600/900 |
| Rear light with brake light | Roxim R3E |
